Features :
• Fully hydraulically controlled German design mechanism.
• Innovative design allows user to choosew the force required for opening the door.
• Has two range closing mechanism in single sweep.
• Independent speed and force control for both closing ranges.
• Fire tested for 2 hours as per European Standards EN 1154.
• Certified by United Kingdom Accreditaion service (UKAS).
• Tested for usage exceeding 3,00,000 Cycles.
• Superior quality silver finish.
Features:

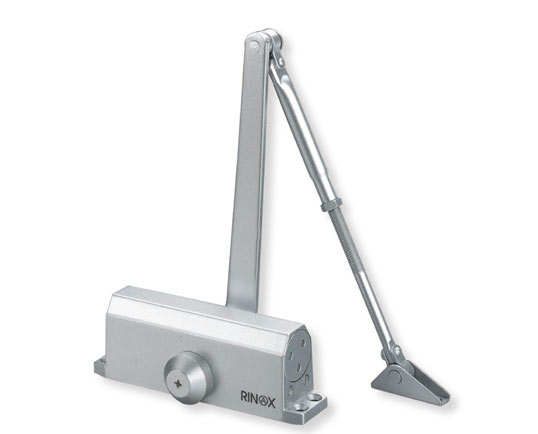

| Product | ODC-203 | ||
|---|---|---|---|
| Technology | Rack & Pinion | ||
| Closing force (EN value) | EN: 2-3 | ||
| Maximum door width | 900mm | ||
| Maximum door weight | 60Kg | ||
| Design | Reversible non-handed design | ||
| Power transmission | Standard arm | ||
| Closing speed range | 180-15 degrees | ||
| Latching speed range | 15-0 degrees | ||
| Latching action | Adjustable by shoe arm reversing | ||
| Length | 182mm | ||
| Width | 41mm | ||
| Height | 63mm | ||
| Installation Possibilities | Pull Side door leaf | ||
| Cycle Tested | 5 Lac |
